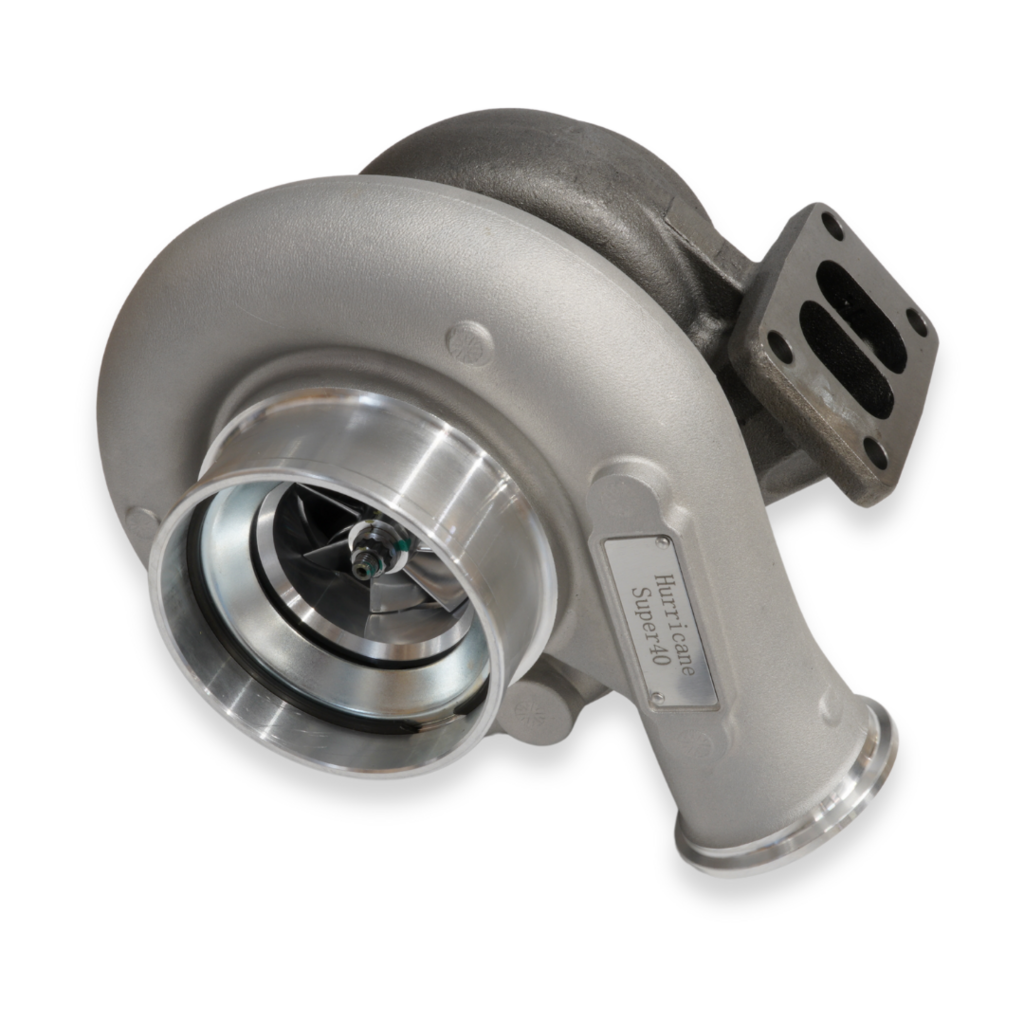

Hurricane Super 40 Competition Turbo #14

Hurricane Super 40 Competition turbo #14

The Hurricane Super 40 delivers up to around 750 hp. Each turbo comes with a CNC-machined billet compressor wheel made for motorsport use. It gives faster response, higher efficiency and better durability compared to standard cast wheels. Every unit is VSR-balanced for maximum reliability and longer service life at high boost levels.

Compressor

• Inducer: 60 mm
• Exducer: 86 mm
• Billet compressor wheel
• 4” inlet
• V-band outlet

CHRA

• Journal bearing
• Oil-cooled
• 51 mm CC oil drain
• M12x1.5 oil feed

Turbine

• Inducer: 75 mm
• Exducer: 65 mm
• #14 (14cm2)

Key advantages of Hurricane turbochargers

• High-quality bearings for long service life and reliability
• Billet-machined compressor wheel made for racing (not cast)
• VSR-balanced for top precision and smooth operation

VSR-balancing vs. standard factory balancing

• Standard balancing: Compressor and turbine are balanced separately at low speed (about 5,000–10,000 rpm). No fine-tuning after assembly.
• VSR-balancing: The complete turbo is tested under oil pressure at up to 100,000–250,000 rpm. It is adjusted in real time for perfect balance under real operating conditions.

Benefits of VSR-balancing

• Much lower vibration (10–20× higher precision)
• Longer bearing and shaft life
• Faster spool and smoother boost response
• Quieter and more stable operation at high rpm
• Lower risk of oil leakage or shaft damage

The billet compressor wheel shown below is supplied with this turbo. It is built for racing and high performance, not to be compared with regular cast wheels. The billet design provides both stronger reliability and longer lifetime.
