Innovate LM-2 Dual Channel AFR Meter w/OBDII
Innovate Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewInnovate LM-2 Dual Channel AFR Meter w/OBDII
The LM-2 combines an air/fuel gauge, a full-featured 32-channel data logger and powerful software to deliver a complete tuning workshop for less than the cost of a dyno day. Whether you have a fuel controller, racecarb, aftermarket ECU, OBD-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to get maximum HP. The gauge's award-winning digital signal processing technology provides data on exactly how rich or lean an engine is running at any given load. The LM-2's self-calibrating circuitry also compensates for changes in temperature, altitude and sensor condition.
Characteristics
Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology!
Broadband O2 Compatible with ALL fuel types
Single or dual channel A/F version available
OBD-II Scan Tool - read/clear fault codes and log up to 16 channels of CAN OBD-II data
Log directly onto SD card
Play log data on screen and/or with powerful LogWorks software
Large LCD graphics with high contrast
Built-in RPM converter (direct frequency or with optional inductive clamp)
4 fully differential analog inputs
2 configure linear analog outputs
Positive locking contacts for all connections
Innovate MTS serial IN and OUT
USB connection to your PC
The LM-2 also has two programmable linear analog outputs for connection to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. With the included LM Programmer software, these analog outputs can also be defined by users.

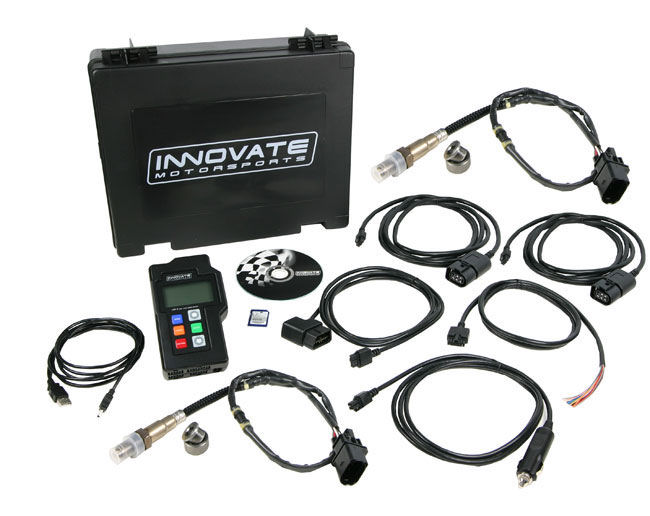

LM-2 Dual "COMPLETE" Kit includes
The LM-2 meter
2x Bosch broadband oxygen sensors
2x 8 ft. Sensor Cables
Power adapter for cigarette lighter
Analog in/out cable
ODB-II/CAN interface cable
SD memory card
USB cable for PC connection
2x welding plug and plug sets and manual
Carrying case is also included! P/N: 38070
----------------
