Write a reviewLink CAN Keypad 8 Buttons

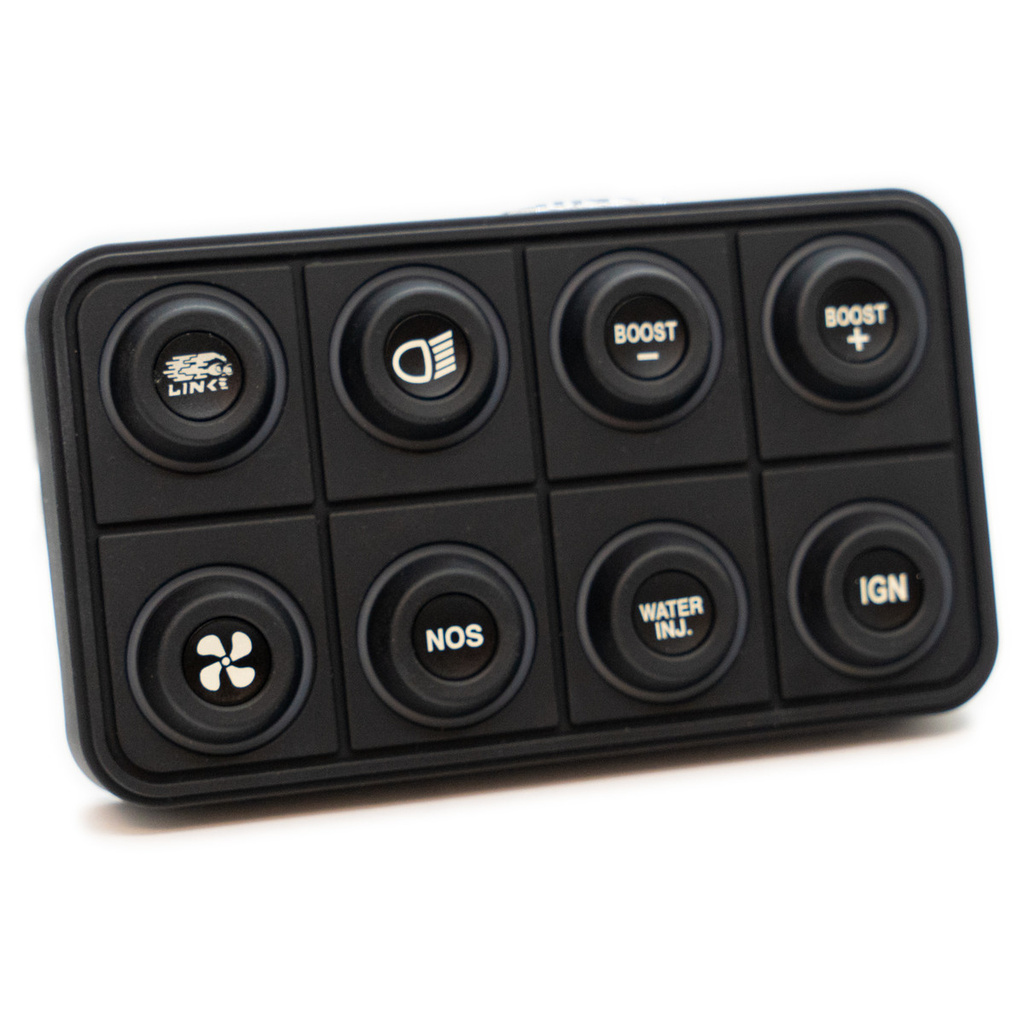

Robust CAN keypad with 8 buttons featuring interchangeable 15mm inserts.

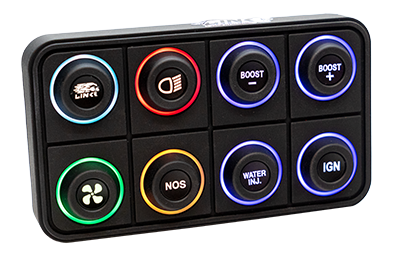

Custom button inserts and configurable RGB indicator rings per button provide extremely flexible settings.
The keypad is designed for ultimate reliability - IP67/IP69K water and dustproof, -40 to +70 operating temperature range, UV 400 hours, salt spray resistant, and switches rated for 3 million operations.
Can be installed both indoors and outdoors, perfect for street, track, and off-road use.
Note The keypad comes with empty button inserts, inserts must be selected and purchased individually. 1 x Link ECU logo button insert is included in the box loose.
Features
- CAN configurable with G4X PC Link – Change LED backlighting, individual button indicator ring, programmable to show status change, flashing options, multiple modes including momentary, latched, and alternating.
- Customizable button inserts - The individual insert replacement system makes it easy and cost-effective to change the keypad layout.
- IP67/IP69K waterproof rating – Guaranteed dust-tight and sealed against water immersion up to 1 meter depth for up to 1 hour. IP69K rating provides protection against high-pressure water jets at high temperatures.
- Compatible with all G4X ECUs. Built-in support from G4X PC Link version 6.22 and later
Box Contents:
- 1 x 8-button CAN keypad
- 1 x DTM4 connector kit
- 1 x connector label
- 1 x keypad button set - logo contact
Specifications:

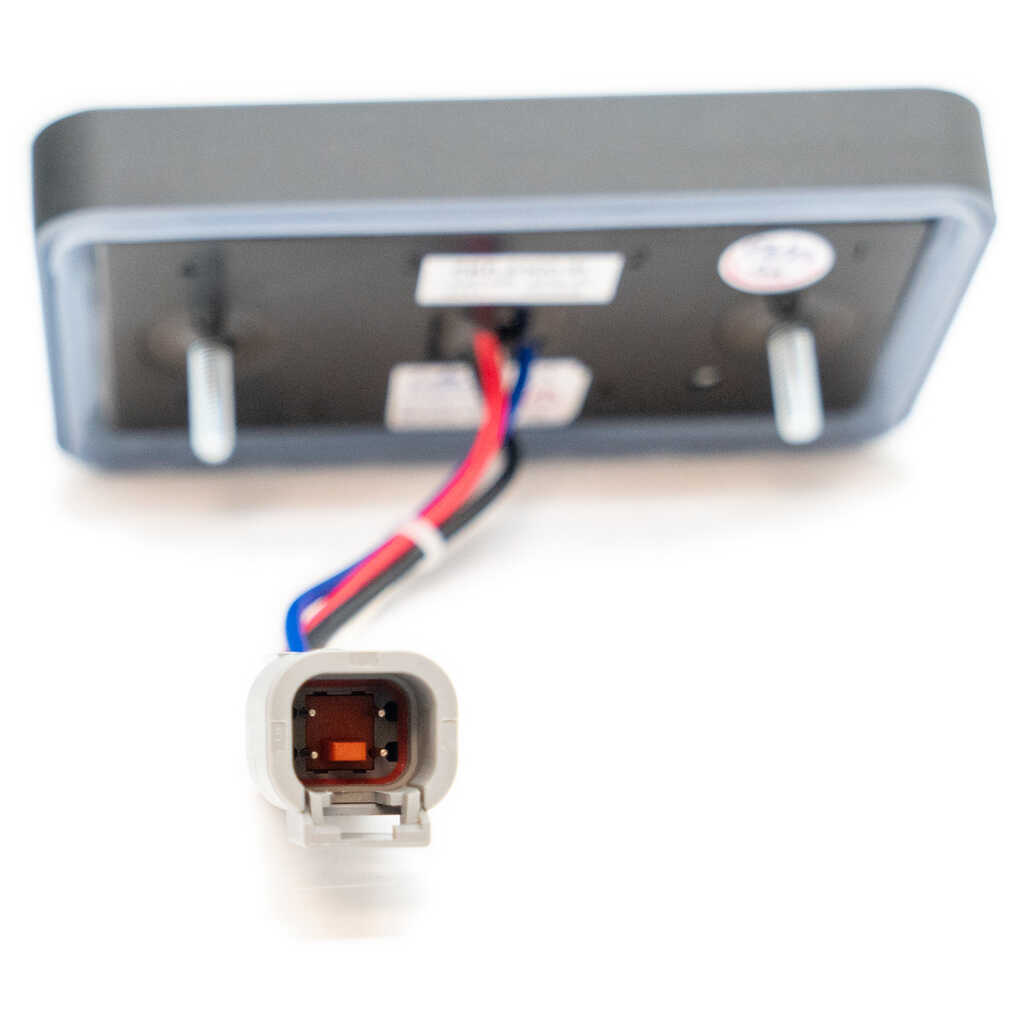

- Connection - DTM4 connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
- Switch Life - 3 million operations
- CANopen Node ID – 0x15 ( 21)
- Standard Baud rate – 1000kbit/s
- Ingress protection class – IP67/IP69K
- Chemical resistance – Deet, engine cleaner, isopropyl alcohol, sunscreen,
- multi-purpose cleaner, orange citrus cleaner, Muriatic acid
- UV protection - UVB 400 hours
- Salt spray per - ASTMB117
- Dimensions – 123.5 mm (W) x 70 mm (H)
Mounting Specifications:
- Mounting bolt distance (center to center) 78 mm
- Nut thread: #10-32
- Maximum torque: 0.8Nm
----------------
