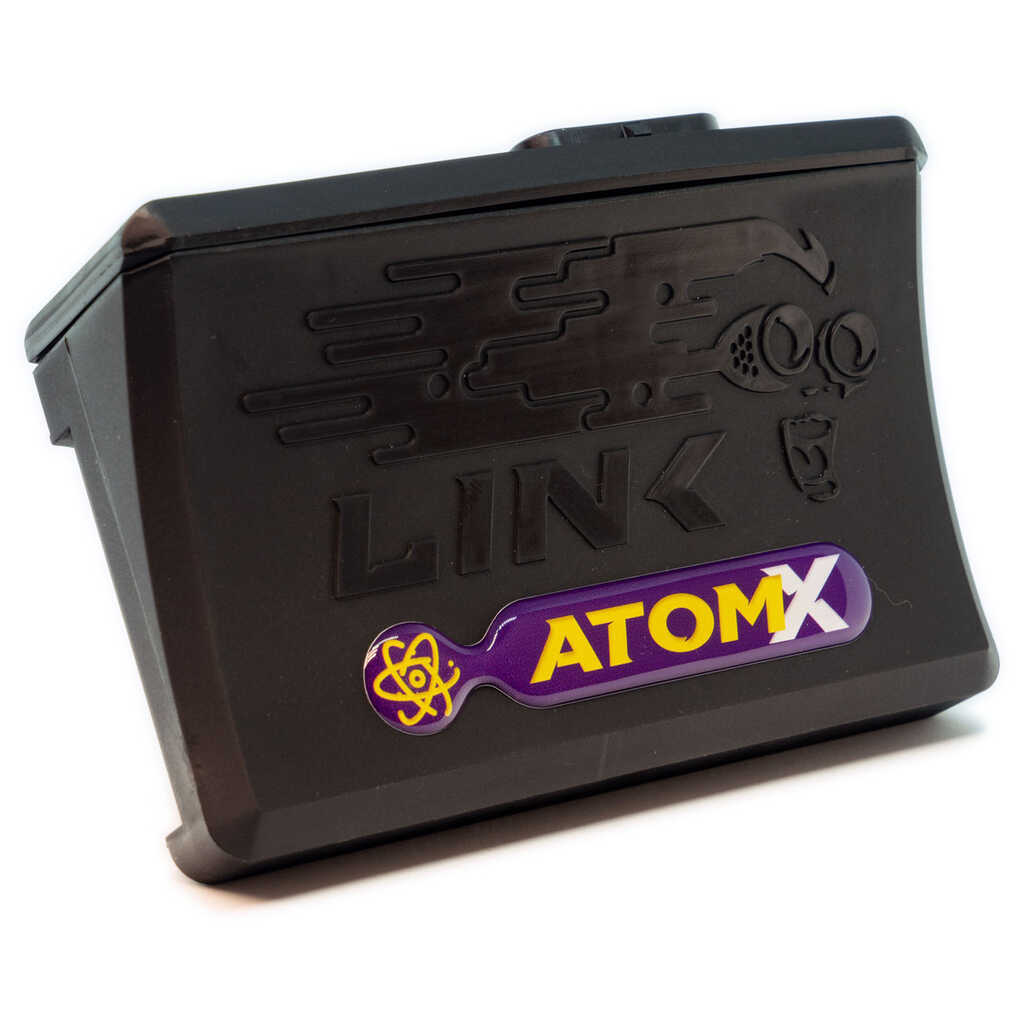

Write a reviewLink G4X AtomX Engine Control
AtomX is the entry-level model from Link but still offers extended data logging and uses the same microcontroller as the entire G4X series.
G4X provides 512 megabytes of logging at 32 bits with up to 250 channels. Up to 1 kHz per channel with 100 kHz/second.
AtomX can control up to 4 cylinders or 2 rotors sequentially, also with knock control.
AtomX fits
1-12 Cylinders Distributed
2-8 Cylinders Waste Spark
1-4 Cylinders Sequentially
Odd fire engines
2-stroke engines
Configurable firing order
Configurable TDC points (for odd fire engines)
Inputs
2 x Digital inputs
2 x Temperature inputs
3 x Analog inputs
2 x Trigger inputs
1 x Knock sensor input
Outputs
4 x Injector drives
4 x Ignition outputs
4 x Extra outputs^
+5V Power supply for sensors
^Unused fuel and ignition outputs can be used as extra AUX outputs
Communication
1x CAN bus
1x USB connection for laptop / PC-Link
1 x 34 pin waterproof connector
Dimensions
Size: 90mmL x 130mmW x 45mmH (Without wiring harness)
Weight: 180 grams
Product Includes
Comes with USB cable and mounting bracket.
