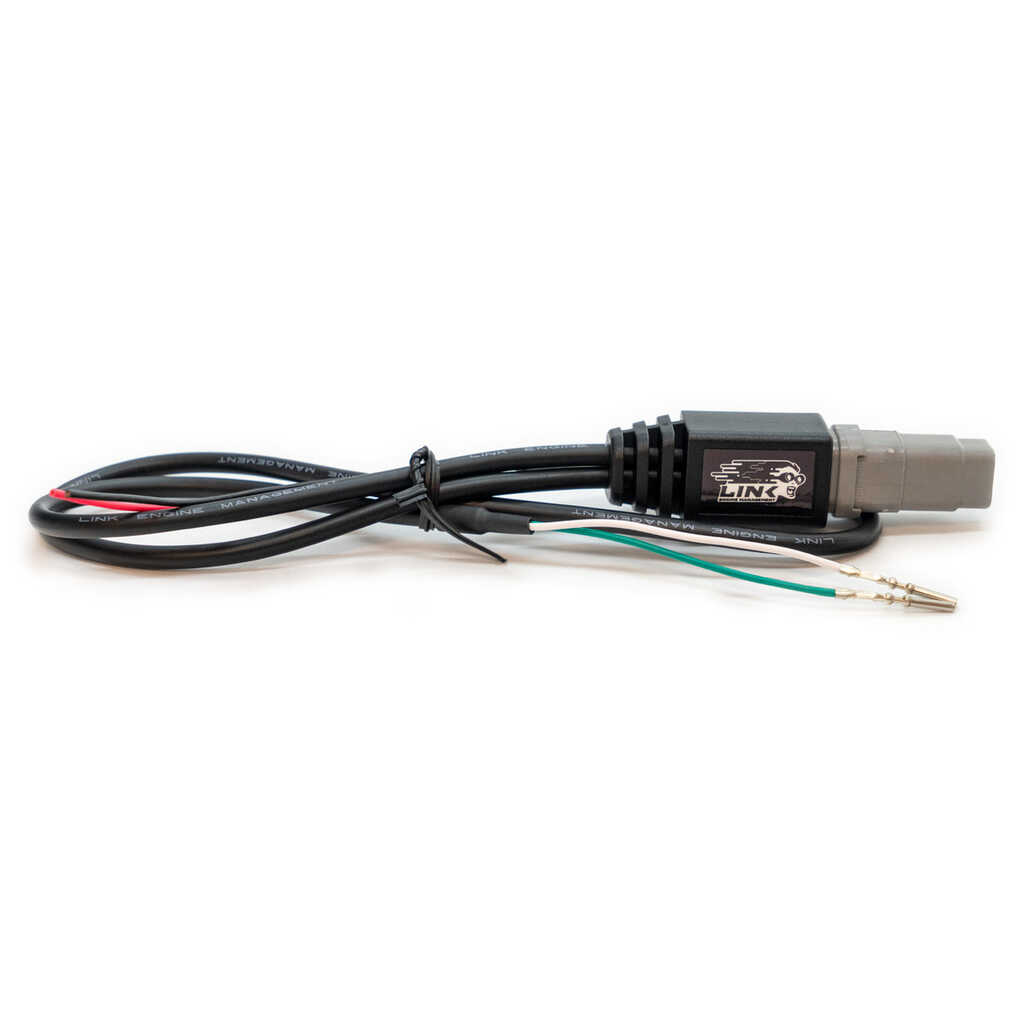

CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN)
Link
CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN)
Used to add CAN communication to WireIn ECU with CAN access via the header.
Compatible ECUs:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G4+ Force (CAN2)
G4+ Thunder (CAN2)
Specifications:
DTM4 Male to loose leads.
CAN H and CAN L crimped with Superseal terminals.
Reviews
Help others choose right. Be the first to write a review!
Write a reviewCANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN)
Used to add CAN communication to WireIn ECU with CAN access via the header.
Compatible ECUs:
- G4X/G4+ Atom (CAN1)
- G4X/G4+ Monsoon (CAN1)
- G4X/G4+ Storm (CAN2)
- G4X/G4+ Xtreme (CAN2)
- G4X/G4+ Fury (CAN2)
- G4+ Force (CAN2)
- G4+ Thunder (CAN2)
Specifications:
- DTM4 Male to loose leads.
- CAN H and CAN L crimped with Superseal terminals.
- 12V and ground via loose leads.
- Length: CAN cable length 300 mm (Length of loose leads: 500 mm)

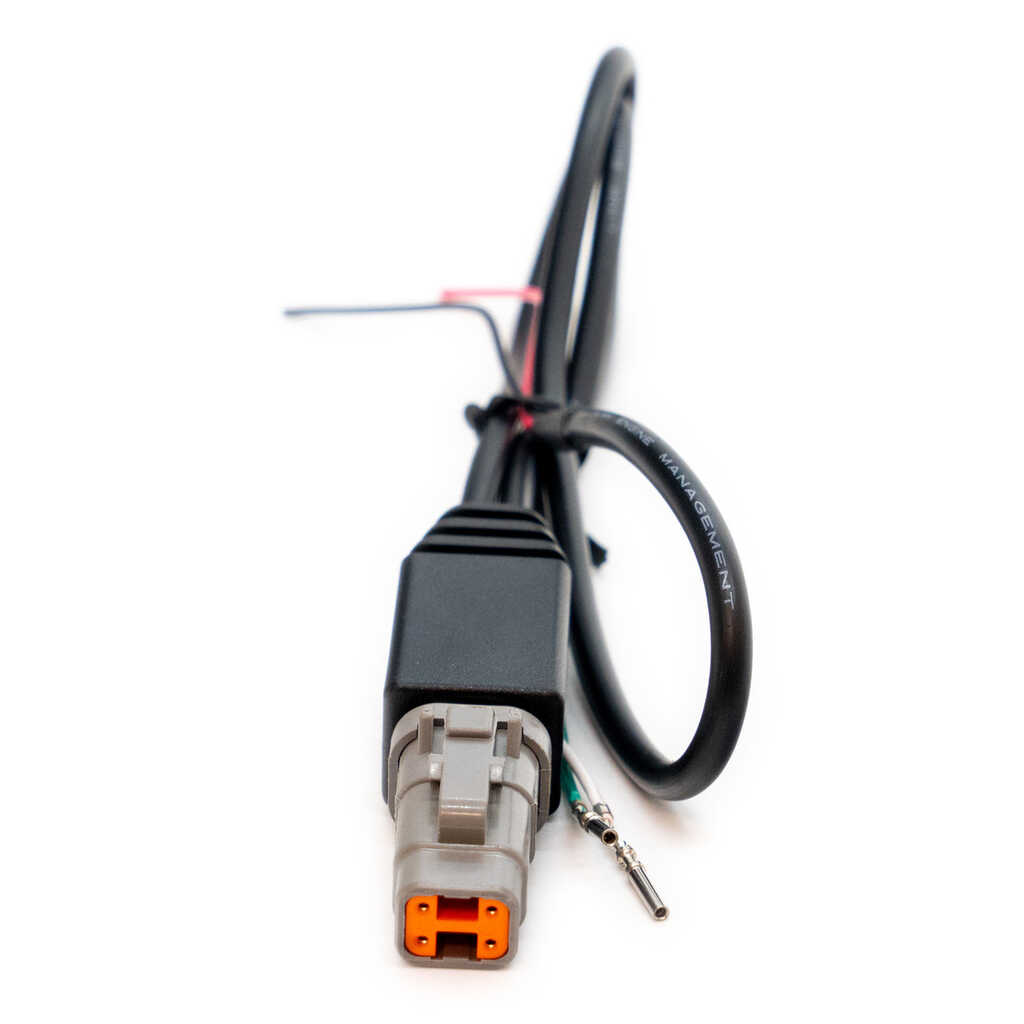

DTM4 Pin Out:
- Pin 4: CAN H
- Pin 3: CAN L
- Pin 2: Ground
- Pin 1: 12V
----------------
